Pixotope supercharges Super Bowl LIV with live mixed reality production
The Future Group, provider of live photo-realistic virtual production system Pixotope has revealed its key involvement in the production and delivery of the NFL’s Super Bowl LIV mixed reality pre-game presentation. The seven-minute production combined live action from multiple moving cameras with augmented virtual stages and graphics.
The Future Group provided six installations of its virtual production platform, Pixotope, along with essential technical expertise to liaise with all other aspects of the multi-faceted production.

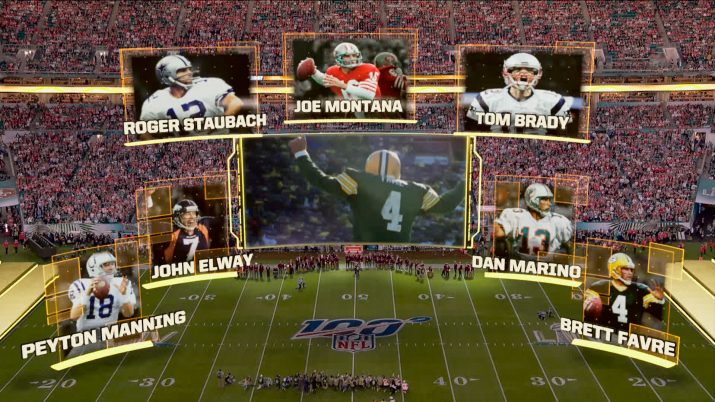

As an opener to the Super Bowl LIV, NFL planned to reveal its ‘100 All Time Team’. They approached fan experience company The Famous Group to design and choreograph the pre-show content. The brief was to celebrate the history of the sport and the contribution of those 100 players and 10 coaches, using graphics, historical film and live shots of attendees. The Famous Group looked to achieve this through extensive use of mixed reality virtual elements, and selected Pixotope, with expertise from The Future Group, as their technological solution.
Multiple virtual assets such as stages and screens needed to be designed to exactly match the stadium environment to which they would be augmented. Cameras needed to be tracked in real time and have their lenses aligned so that the virtual elements would be generated at precisely the right angle to accurately match real-world positions. Lighting needed to be measured so that it could be simulated in the virtual world to ensure correct shadows and highlights.
In-stadium screens, which would show the augmented content to the crowd, had to be accurately marked out in the virtual scene so that they could be blocked out to avoid visual ‘feedback’. All this had to take place under precise time control to synchronise with the voice-over and contributing performers in the stadium.
Pixotope product specialist David Stroud was part of a team of experienced mixed reality technicians, helping to specify and install the required technology, and bring together all the constituent departments. The Future Group team were involved from the outset, initially collaborating using a shared virtual project to provide technical assistance for The Famous Group creatives. Then later, the team positioned themselves at the Hard Rock Stadium, Miami FL, where the main event would take place 11 days later.
David Stroud recalled, “Although the virtual scene had been set up ‘offline’ from scans and measurements from the stadium, there are inevitably adjustments that can only be done on site. We used our Pixotope virtual production platform to receive images and tracking data from each of the cameras, one of which was a Skycam wire-camera, and augment onto those the virtual elements designed by The Famous Group. This allowed everyone to see the results in real time, making adjustments and improvements as we rehearsed the show in the days leading up to the Super Bowl.”
Stroud continued, “We helped the camera operators visualise how the preshow would come together, as understandably, they were more used to following the unscripted action of a football game than reacting to very specific time cues. Pixotope has the capability to continuously output the final result, even while editing the graphics – a great tool for directors following rapid changes and updates because it’s always live.
“We also worked closely with camera tracking specialists SMT, and in fact, we were able to improve our data exchanges to further perfect the virtual camera motion. And we worked with both the broadcaster (Fox) and the companies providing in-stadium displays to ensure the very highest visual quality possible.”
All hardware was provided by Quince Imaging and camera tracking was completed by SMT.
