IBC2023: TVU Networks to introduce the One 5G transmitter

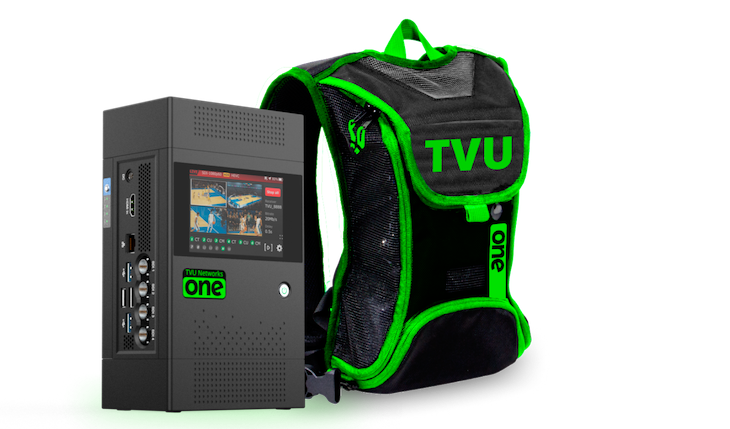

TVU Networks is set to debut its next-generation 5G transmitter, the all-new One. Weighing in at 1.79kg and 200mm tall, the One is a compact and full-featured portable 5G transmitter. Within seconds, it’s ready for live 5G cellular transmission from a single video source, according to TVU Networks.
If synchronised frame accurate multi-camera live event coverage is desired, One can switch to remote production for up to four video sources on the fly within minutes. It aggregates all available wireless and wired connections for transmission, including embedded 5G modems and Starlink. One is fully integrated with the TVU cloud and on-prem ecosystem. All video feeds are AI powered with automated metadata for full video production.
The transmitter features the latest 5G NR modem technology and the most advanced antenna design available in a portable cellular backpack-style transmitter. Using the latest generation Sub 6GHz, 3GPP Release 16, 5G embedded modems, One supports NSA and the latest SA networks, including network slicing and IPv6 connectivity. It has an advanced antenna array, featuring multiple antennas per modem, including the ability to support MIMO uplink with supported carriers. Broadcasters will be assured of transmission with wider coverage, better range, increased data transfer rates, and the assurance of future compatibility thanks to this next phase of 5G network deployment, says TVU Networks.
One will also have the latest version of TVU’s patented Inverse StatMux (ISX) transmission technology fully integrated into the unit. The newly developed ISX protocol provides a reliable and efficient transmission protocol even in the most challenging transmission environments, such as heavy congestion or choppy signal areas. The new algorithm’s real-time monitoring of cell traffic and accurate projection of data connection throughput ensures the utilisation of available bandwidth to its fullest potential, resulting in superior video quality and uninterrupted delivery. As an added advantage, ISX allows for extremely low latency – as low as 0.3 seconds using cellular connectivity.
The versatility of One for cellular transmission or multi-camera REMI production makes it suitable for live coverage of all types of major events including sports. With the ability to deliver 4K/60P HDR transmission, it can provide the high-quality video demanded for sports viewing. It supports up to 3G-SDI or HDMI 2.0 inputs, including SD, 720p, 1080i and 1080p at up to 60fps. Eight- or 10-bit 4:2:2 or 4:2:0 are also supported for ultimate picture quality.
“With its versatility as either a traditional broadcast cellular 5G transmitter or REMI solution, the One provides an enormous amount of operating efficiency in the field for broadcasters,” stated Paul Shen, CEO, TVU Networks. “Its synchronised multi-camera REMI capabilities also empower on-location crews to get on-air faster, all while reducing the carbon footprint. By leveraging existing studio infrastructure, eliminating the need for large production trucks, and using smaller field crews, this revolutionary approach contributes to a more environmentally sustainable broadcasting workflow.”
